Dino Game
Description
This project is a small Arduino LCD dinosaur game inspired by the classic running dinosaur game. It uses an Arduino board, a 16x2 I2C LCD display, and a push button. The dinosaur stays on the left side of the screen, while a cactus moves from right to left. When the button is pressed, the dinosaur jumps to avoid the cactus. If the cactus reaches the same position as the dinosaur, the game ends and a “GAME OVER” screen is displayed. This project is useful for learning LCD custom characters, I2C display control, button input, simple game logic, collision detection, timing with millis(), and basic animation on an Arduino display.
Required components:
- 1x Arduino UNO
- 1x LCD display with integrated I2C module
- 1x NC button
- 1x 10kΩ Resistor
- Jumper Cables (and optional breadboard)

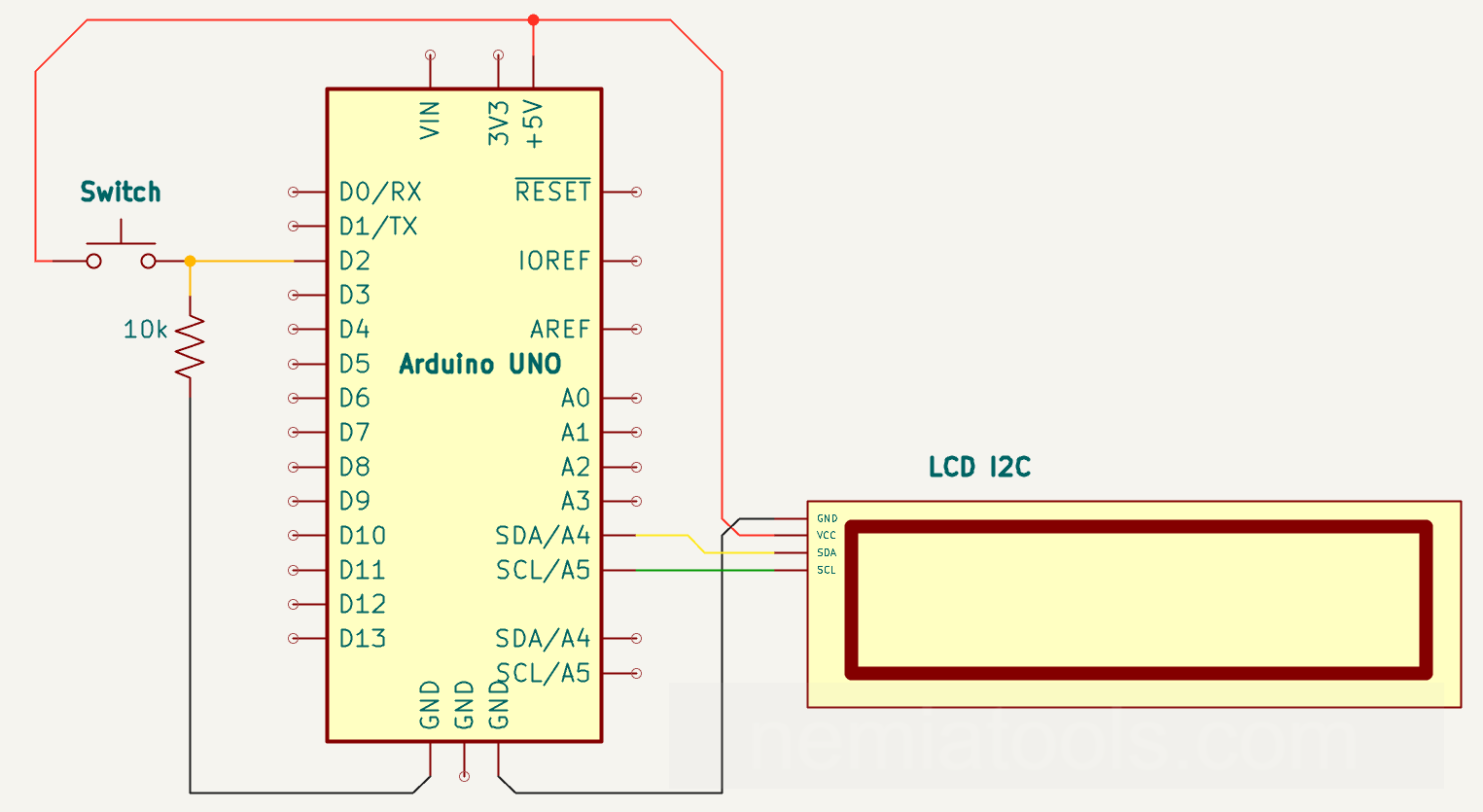

Schematic:
CODE:
// https://nemiatools.com
#include <Wire.h> // Include I2C communication library
#include <LiquidCrystal_I2C.h> // Include LCD I2C library
#define buttonPin 2 // Define button input pin
LiquidCrystal_I2C lcd(0x27, 16, 2); // Create LCD display object
byte dino1[8] = { // Define first dinosaur sprite
B00111,
B00101,
B00111,
B00100,
B01111,
B11100,
B11100,
B00100
};
byte dino2[8] = { // Define second dinosaur sprite
B00111,
B00101,
B00111,
B00100,
B01111,
B11100,
B11100,
B10000
};
byte cactus[8] = { // Define cactus custom sprite
B00100,
B00100,
B10100,
B10101,
B11111,
B00100,
B00100,
B01110
};
//dino coordinates
const int dinoX = 4; // Set dinosaur horizontal position
int dinoY = 1; // Set dinosaur vertical position
//cactus coordinates
int cactusX = 15; // Set cactus horizontal position
const int cactusY = 1; // Set cactus vertical position
//millis for jump
unsigned long lastJump = 0; // Store last jump time
unsigned long jumpDuration= 600; // Set jump duration time
//millis for game time
unsigned long startGame = 0; // Store game start time
unsigned long gameTime = 0; // Store elapsed game time
int timeX; // Store timer cursor position
//button states
bool buttonState; // Store current button state
bool oldButtonState = false; // Store previous button state
void setup() {
pinMode(buttonPin, INPUT); // Configure button as input
lcd.init(); // Initialize the LCD display
lcd.backlight(); // Turn LCD backlight on
// Save custom characters memory
lcd.createChar(0, dino1); // Save first dinosaur sprite
lcd.createChar(1, dino2); // Save second dinosaur sprite
lcd.createChar(2, cactus); // Save cactus custom sprite
//Initial menu
lcd.setCursor(0, 0); // Set cursor first line
lcd.print("DINO GAME"); // Print game title text
lcd.setCursor(0, 1); // Set cursor second line
lcd.print("by NEMIAtools"); // Print author name text
while (true){ // Wait until button press
if(digitalRead(buttonPin)) break; // Exit when button pressed
}
while(digitalRead(buttonPin)){ // Wait until button released
}
}
void game(){ // Run main game function
startGame = millis(); // Save current start time
lastJump = millis() - jumpDuration; // Reset jump timing state
oldButtonState = false; // Reset previous button state
dinoY = 1; // Place dinosaur on ground
bool dinoState = true; // Set dinosaur animation state
while(true){ // Repeat game loop forever
gameTime = (millis() - startGame) / 10; // Calculate elapsed centiseconds
lcd.clear(); // Clear LCD display content
buttonState = digitalRead(buttonPin); // Read current button state
if(buttonState && !oldButtonState && millis() - lastJump >= jumpDuration){ // Check valid jump request
lastJump = millis(); // Save new jump time
}
oldButtonState = buttonState; // Update previous button state
if(millis() - lastJump < jumpDuration) dinoY = 0; // Move dinosaur upward while jumping
else dinoY = 1; // Move dinosaur back down
if(gameTime > 99999) gameTime = 99999; // Limit maximum displayed time
timeX = String(gameTime).length(); // Count timer digit length
lcd.setCursor(16 - timeX, 0); // Align timer right side
lcd.print(gameTime); // Print current game time
lcd.setCursor(cactusX, cactusY); // Set cursor at cactus
lcd.write(byte(2)); // Draw cactus custom character
lcd.setCursor(dinoX, dinoY); // Set cursor at dinosaur
if(dinoState) lcd.write(byte(0)); // Draw first dinosaur frame
else lcd.write(byte(1)); // Draw second dinosaur frame
if((cactusX == dinoX) && (cactusY == dinoY)){ // Check collision with cactus
lcd.setCursor((dinoX + 1), cactusY); // Set cursor beside dinosaur
lcd.write(byte(2)); // Draw cactus after collision
break; // Exit game loop immediately
}
cactusX--; // Move cactus leftward once
if(cactusX < 0) cactusX = 15; // Reset cactus at right
dinoState = !dinoState; // Switch dinosaur animation frame
delay(100); // Wait before next frame
}
return; // Return from game function
}
void gameover(){ // Run game over screen
lcd.setCursor(0, 0); // Set cursor first line
lcd.print("GAME OVER"); // Print game over text
lcd.setCursor(1, 1); // Set cursor second line
while(digitalRead(buttonPin)){ // Wait for button release
}
while(!digitalRead(buttonPin)){ // Wait for button press
}
while(digitalRead(buttonPin)){ // Wait for button release
}
return; // Return from gameover function
}
void loop() {
cactusX = 15; // Reset cactus start position
lcd.clear(); // Clear LCD before game
game(); // Start main game function
gameover(); // Show game over screen
}How it works:
This project works as a simple dinosaur runner game on a 16x2 I2C LCD display. The player presses a button to make the dinosaur jump over a cactus that moves from right to left.
The line #include <Wire.h> enables I2C communication, while #include <LiquidCrystal_I2C.h> allows the Arduino to control the LCD through the I2C adapter. Thanks to I2C, the display needs only SDA and SCL communication lines instead of many parallel LCD pins.
The line LiquidCrystal_I2C lcd(0x27, 16, 2); creates the LCD object. The value 0x27 is the I2C address of the display, while 16, 2 means that the LCD has 16 columns and 2 rows.
The arrays byte dino1[8], byte dino2[8], and byte cactus[8] define custom LCD characters. Each one is made of 8 rows of pixels. The two dinosaur sprites are used to create a running animation, while the cactus sprite is the obstacle.
The line const int dinoX = 4; fixes the dinosaur horizontal position. The variable int dinoY = 1; controls the vertical position: when it is 1, the dinosaur is on the ground; when it is 0, the dinosaur is jumping.
The variable int cactusX = 15; starts the cactus from the right side of the display. At every game frame, the line cactusX--; moves it one position to the left. When it goes out of the screen, if(cactusX < 0) cactusX = 15; places it again on the right side.
The most important timing part of this project uses millis(). In Arduino, millis() returns the number of milliseconds passed since the board was powered on or reset. It is useful because it allows the code to measure elapsed time without depending only on fixed delays.
At the beginning of the game, the line startGame = millis(); saves the exact moment when the game starts. Later, the line gameTime = (millis() - startGame) / 10; calculates how much time has passed since the start of the game. The division by 10 converts milliseconds into centiseconds, so the displayed value increases like a fast game score.
The variable lastJump stores the moment when the last jump started. The line lastJump = millis() - jumpDuration; is used at the start of the game to make the dinosaur immediately ready to jump. Since jumpDuration is already subtracted, the condition for allowing a new jump is already true.
The line unsigned long jumpDuration = 600; sets the jump duration to 600 milliseconds. This means that, after a valid button press, the dinosaur stays on the upper row for about 0.6 seconds before returning to the ground.
The line buttonState = digitalRead(buttonPin); reads the button. The condition if(buttonState && !oldButtonState && millis() - lastJump >= jumpDuration) checks three things: the button is currently pressed, it was not pressed in the previous frame, and the previous jump has already finished.
This condition is important because it detects only a new button press, not a button that is being held down. The part !oldButtonState prevents continuous jumping while the player keeps the button pressed.
When the jump is valid, the line lastJump = millis(); saves the current time as the start of the new jump. From that moment, the code compares the current millis() value with lastJump to know if the dinosaur should still be in the air.
The condition if(millis() - lastJump < jumpDuration) checks if less than 600 milliseconds have passed since the jump started. If this is true, dinoY = 0; moves the dinosaur to the upper row. Otherwise, dinoY = 1; brings it back to the ground.
The timer shown on the display is aligned to the right using timeX = String(gameTime).length(); and lcd.setCursor(16 - timeX, 0);. This keeps the score positioned correctly even when the number of digits increases.
The cactus is drawn using lcd.setCursor(cactusX, cactusY); and lcd.write(byte(2));. The dinosaur is drawn using lcd.setCursor(dinoX, dinoY);. The variable dinoState switches between dino1 and dino2 to create a simple running animation.
The collision is checked with if((cactusX == dinoX) && (cactusY == dinoY)). If the cactus and the dinosaur are in the same LCD position, the game stops and the player loses.
The line delay(100); controls the speed of the game frames. Even if the jump timing is calculated with millis(), this delay still affects how often the screen is refreshed and how fast the cactus moves.
When a collision happens, the function gameover() displays GAME OVER and waits for the player to press the button again before restarting the game.
Overall, millis() is used in two main ways: to calculate the game score from the start time, and to control the jump duration precisely. This makes the jump depend on elapsed time instead of only on the number of loop cycles.
For stable button behavior, it is recommended to use a pull-down or pull-up resistor, or to adapt the code to use INPUT_PULLUP.
Future development:
This project could be improved by adding a buzzer to create simple sound effects. For example, the buzzer could play a short tone when the dinosaur jumps and a different sound when the player hits the cactus. This would make the game more interactive and closer to a real arcade-style mini game.
